ZD-100 10MPA 16ML Easy Operation And Maintanance Pressure Tester 50 Bar Hydro Test Pump
Description for Manual test pump
ZD-100 manual pressure test pump adopts the combination of automatic and manual pressure locking, which makes it easier to obtain accurate pressure in the test. The pump body and water outlet part are all made of copper parts, which are not easy to rust and have good corrosion resistance. It's suitable for working sites in various harsh environments.
Pressure Lever: 38cm
Tank Body Length: 42cm
Tank Body Width: 21cm
Tank Body Height: 26cm
Thickness: 1mm
Tank Capacity: 10L
Discharge: 16ml/ one stroke
Net weight: 4.5kg
Packing size: 42x21x26cm
| Photo | Model | Pressure | Flow volume | G.W/N.W | Water tank volume | Meas | Note |
 | ZD-50 | 0-5MPA | 16ML | 5.0/4.5KG | 7L | 42*21*26cm | plate thickness 1mm |
| ZD-100 | 0-5MPA | 16ML | 5.0/4.5KG | 10L | 42*21*26cm | plate thickness 1mm |

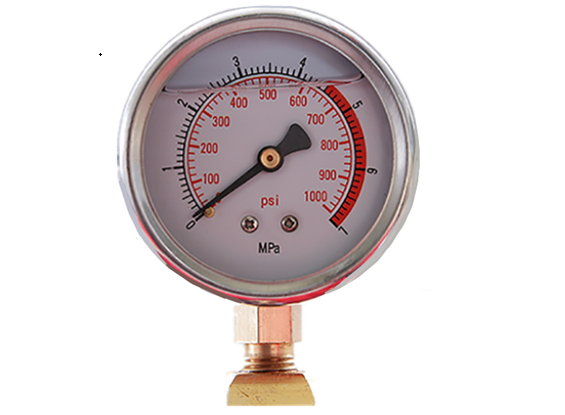

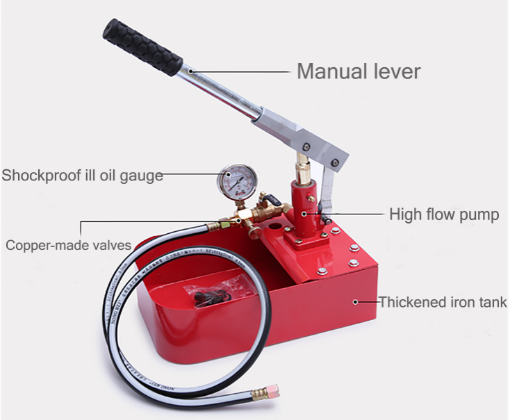

Shockproof fill oil gauge

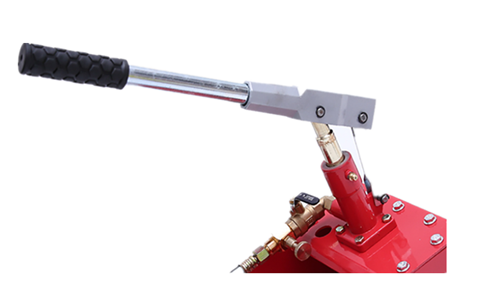

Galvanized thickened lever

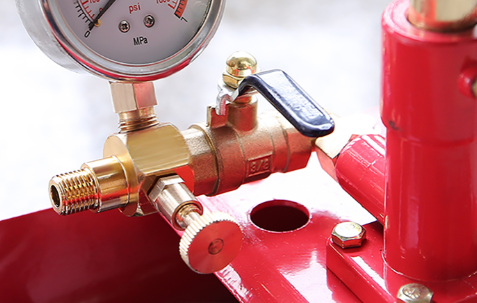

Copper-made valves

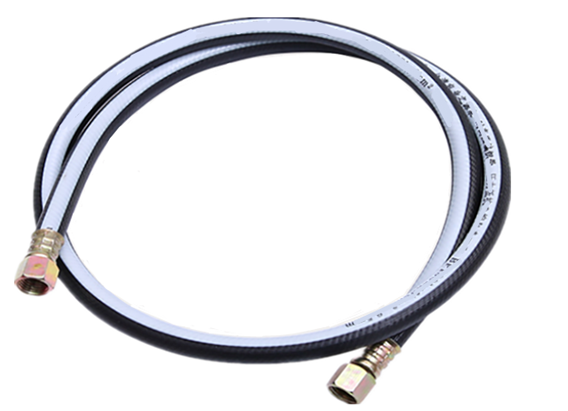

Hydraulic hose
Feature
1. For quick and exact compression testing
2. For testing of leaks in installations, especially for use in heating, compressed air, refrigeration systems, oil installations, sprinkler systems and other small bore pipe applications
Pls follow the below step to install the test pump
PACKING
We put pp fittings into nylon bags then cartons outside. We also packed other pipe fittings with plastic bags.
SHIPPING
For sample orders, we can ship it by international express, such as DHL, FEDEX, TNT and China EMS.
For bulk orders, we support air cargo and sea shipping, our factory are near from Shanghai port and Ningbo port, and we can transfer goods to port within 24 hours.
We always provide high quality products and workable price for every clients and have won the trust, enjoy a good reputation in the market.
Machine Quality Guarantee: 12 months.--If any parts broken or does not work under normal operating, we provide them for free.
Our service
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.
Q: How about the use of maintenance technology and equipment?
A: We have free test-bed and maintenance and training services for various pressure testing pumps.
Q: Why should I choose your product?
A: We can provide you the best quality and the most competitive price, and we have our own engineer, if you have any requirements
You can contact us directly.
Our Expertise is our Strength. Our team of experts understand the products and its application very well, who can guide our valuable customers to select the right product for the right application.
Light Weight Portable Hand Pressure Test Pump With Reasonable Price
The color could be designed by yourself, the same as your logo.
Product Tags:
|
|
10MPA 16ML 50 Bar Hydro Test Pump Easy Operation And Maintanance Images
|
